2-Phase 24HS（1.8º） hybrid stepper motor

Place of Origin : CHANGZHOU

Brand Name : DK

Certification : CE, ROHS, CCC.

Model Number : 24HS Series

MOQ : 5PCS

Price : CONFIRMED

Packaging Details : SUIT EXPORT

Delivery Time : CONFIRMED

Payment Terms : T/T inadvance

Supply Ability : 500pcs/month

Contact Now

hybrid stepper motor
Product Model:2-Phase 24HS(1.8º)

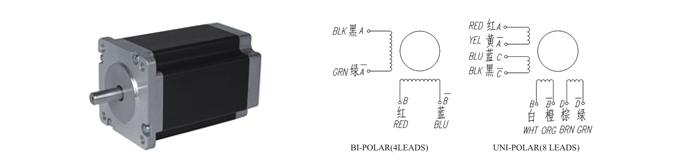

Wiring Diagram:

2-Phase 24HS（1.8º） hybrid stepper motor

Electrical Specifications:

Series Model Step Angle (°) Motor Length (mm) Rated Current (A) Phase Resistance (Ω) Phase Inductance (mH) Holding Torque (N.m Min) Detent Torque (N.cm Max) Rotor Inertia (g.cm²) Lead Wire (No.) Motor Weight (g)
24HS0408 1.8 41 2.0 1.2 2.5 0.75 3.0 180 4 500
24HS4425 1.8 45 2.5 1.0 2.2 0.85 3.5 200 4 550
24HS5425 1.8 51 2.5 1.2 3.2 1.4 4.0 250 4 580
24HS6425 1.8 56 2.5 1.3 4.2 1.6 4.0 350 4 580
24HS6430 1.8 56 3.0 0.8 2.4 1.6 4.0 350 4 580
24HS6404 1.8 56 4.2 0.4 1.2 1.6 4.0 350 4 580
24HS7425 1.8 64 2.5 1.5 4.5 1.8 5.0 450 4 850
24HS7430 1.8 64 3.0 0.8 2.3 1.8 5.0 450 4 850
24HS7404 1.8 64 4.2 0.55 1.2 1.8 5.0 450 4 850
24HS8425 1.8 76 2.5 1.8 6.5 2.2 7.0 550 4 1150
24HS8430 1.8 76 3.0 1.0 3.5 2.2 7.0 550 4 1150
24HS8404 1.8 76 4.2 0.6 1.8 2.2 7.2 550 4 1150
24HS1430 1.8 90 3.0 1.4 5.5 2.6 12 780 4 1400
24HS1404 1.8 90 4.2 0.8 3.0 2.6 12 780 4 1400


*Note: We can manufacture products according to customer’s requirements

Dimensions: unit=mm Motor Length:

2-Phase 24HS（1.8º） hybrid stepper motor

Series Model Motor Length
24HS0XXX 41 mm
24HS4XXX 45 mm
24HS5XXX 51 mm
24HS6XXX 56 mm
24HS7XXX 64 mm
24HS8XXX 76 mm
24HS1XXX 90 mm
